HONGKONG SHIPBUILDING HEAVY INDUSTRY (GROUP) CO., LTD.

Produce name： Incinerator

with insulation material are equipped inside the combustion chamber. The body is double-steel-plate structure and the cooling air is between the double plates.

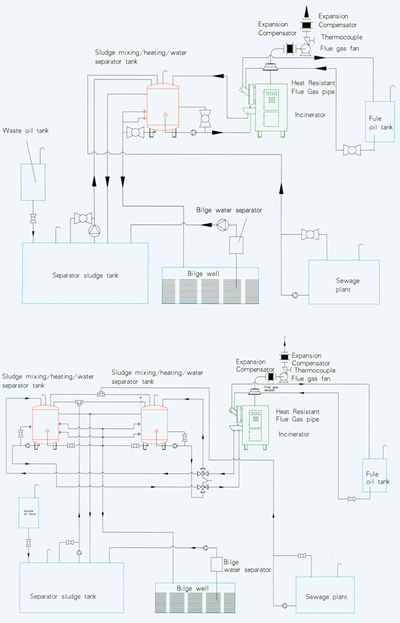

Recommended Vessel Incinerator Installation

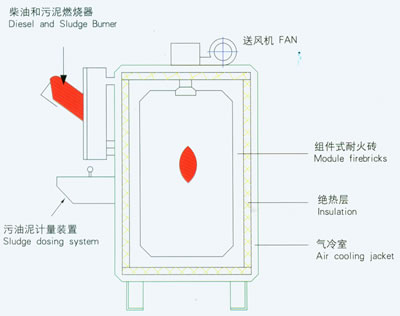

Inner Structure of Incinerator Body

The body consists of steel structure, burner, sludge dosage device, insulation material and firebricks. The combustion chamber is designed to be in cylinder shape. To be sure that the waste can get burned completely, the waste burned and the flame inside the chamber form spiral burning flow to enlarge the contacting area. The firebricks coated with insulation material are equipped inside the combustion chamber. The body is double-steel-plate structure and the cooling air is between the double plates.

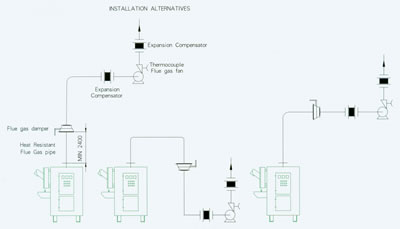

Recommended Incinerator Installation
